Standard Duty Fixed Position Pivot
Bases Modified per Gearbox

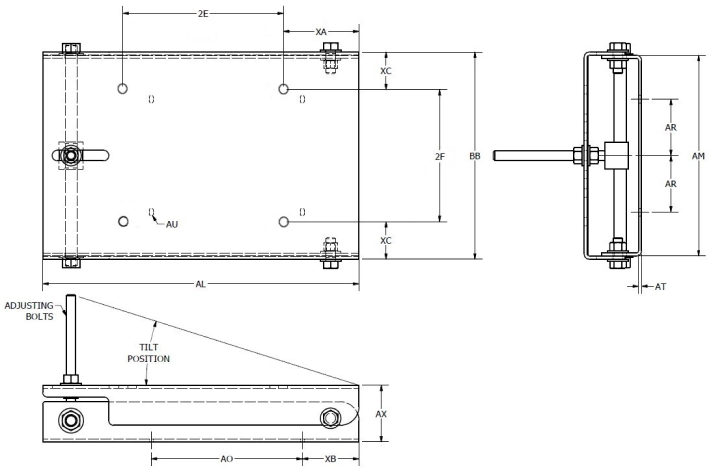

| DIMENSION CHART FOR FIXED PIVOT BASES | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | AL | AM | AX | BB | XA, 2E, XC, 2F | XB | AO | AU | AR | AT | ADJUSTING BOLTS | TLT Position |
| *Custom* | 15.00 | 7.19 | 3.50 | 7.50 | DRILLED & TAPPED PER GEARBOX | 3.00 | 5.50 | 0.38 | 2.25 | 0.14 | 1/2"-13 | 30° |
| *Custom* | 16.75 | 10.66 | 3.00 | 11.00 | DRILLED & TAPPED PER GEARBOX | 3.00 | 8.00 | 0.22 | 3.00 | 0.16 | 1/2"-13 | 30° |
| *Custom* | 20.00 | 14.63 | 3.50 | 15.00 | DRILLED & TAPPED PER GEARBOX | 3.00 | 9.00 | 0.56 | 5.00 | 0.19 | 5/8"-11 | 30° |
